WMD Performance Mixer + PM Channels Expander

WMD Performance Mixer + PM Channels Expander

Regular price $1,625.00 CAD
Regular price Sale price $1,625.00 CAD
Sale Sold out
Shipping calculated at checkout.
Condition

****Last available****



A game changing mixer for live performance within the Eurorack modular synth ecosystem.

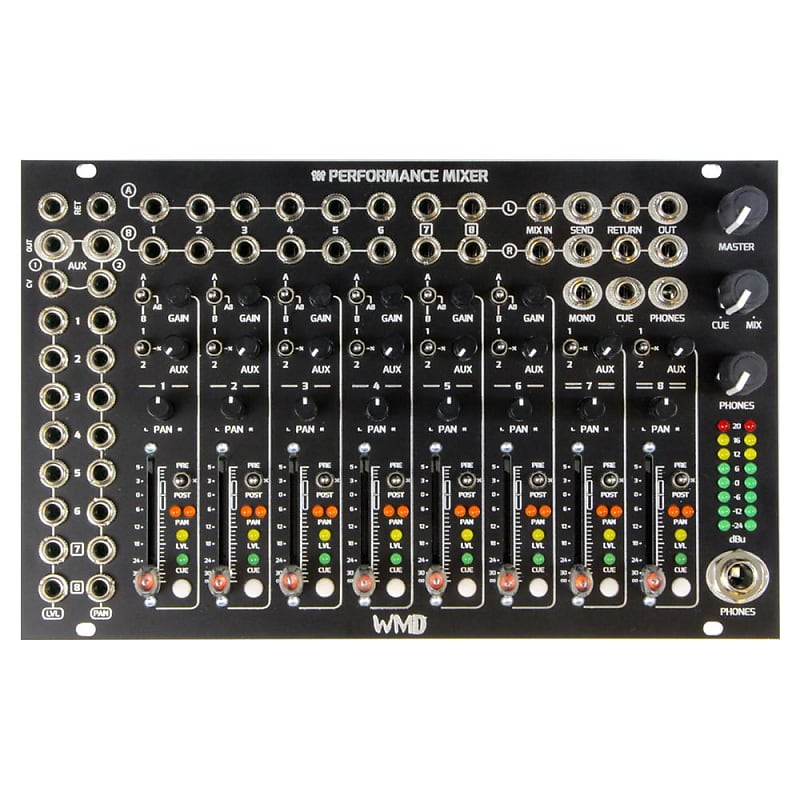

The Performance Mixer is an 8 channel audio mixer designed specifically for live performance and jam sessions within the modular ecosystem.  With 12 audio inputs for the first 6 channels, and 2 true stereo channels, there is plenty of room for all of your modular signals and more.

2 mono auxiliary sends with dual mono returns, stereo send and return, and another set of stereo mix inputs give you the routing you need to send signals to interesting effects as well as utility uses such as bus compression and master equalizers.

Tired of not being able to tune oscillators and program sequencers on the fly? Not to worry, the performance mixer also includes a cue mix section so you can monitor your incoming signals in headphones before sending them to the front of house mix.  Just like on a traditional DJ mixer, the cue mix knob determines how much of the cue vs the FOH mix you hear in the phones.

Two headphone outputs for convenience and teamwork.  Collaborate with friends with out wasting any channels by sending the stereo output of their mixer into the unity gain mix input.  Monitor with the dual headphone outputs and you can both hear the entire mix.

  • 6 Mono channels with 2 switchable or summed inputs gives you a total of 12 inputs.
  • 2 True stereo channels
  • CUE Mixing allows you to monitor signals before they hit front of house
  • Voltage control over Level and Panning for all channels
  • 2 Auxiliary sends, switchable for each channel
  • Aux sends are available Pre and Post fader via switch
  • 2 mono and 2 stereo unity gain inputs for adding submixes or external audio sources
  • 2 Headphone outs, 1-3.5 mm and 1- ¼ inch for collaboration and convenience

------------------------------------------------------------

Two more stereo channels for your Performance Mixer

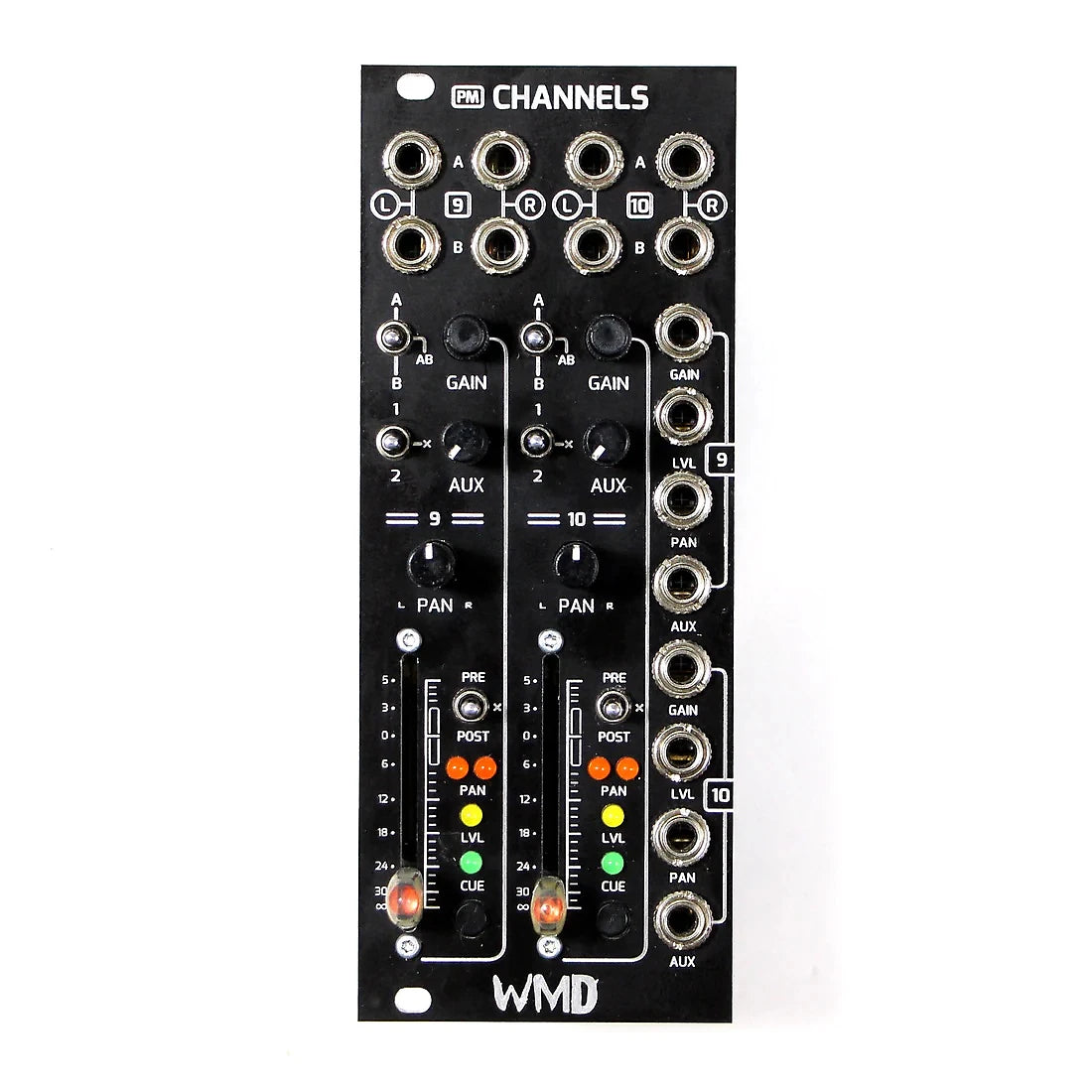

The PM Channels is an expansion module for the WMD Performance Mixer

  • Two sets of inputs for each stereo channel that can be selected or summed via the 3-way toggle switch.
  • More than 30dB of gain over each channel lets you use external sources such as consumer audio equipment, not just modular signals.
  • CV over Gain, Level, Pan, and the Aux send for both channels.
  • Channels can be muted with PM Mutes expander as well as included in the Cue Mix.



Specs:

  • Power: +12V = 120mA; -12V = 120mA
  • Size: 10HP
  • Depth: 45mm
  • Cannot be used independently of the Performance Mixer.
  • Only one PM Channels may be added to a Performance Mixer

**Please note that WMD now only builds Performance Mixer modules as they are ordered due to high demand and component shortages. The waiting list is at least 6-8 weeks long for all retailers. Pre-orders ensure that you will receive one from the incoming batch. Estimated delivery dates are listed below the pre-order button. Feel free to reach out with any questions Thanks!**
