New Systems Instruments

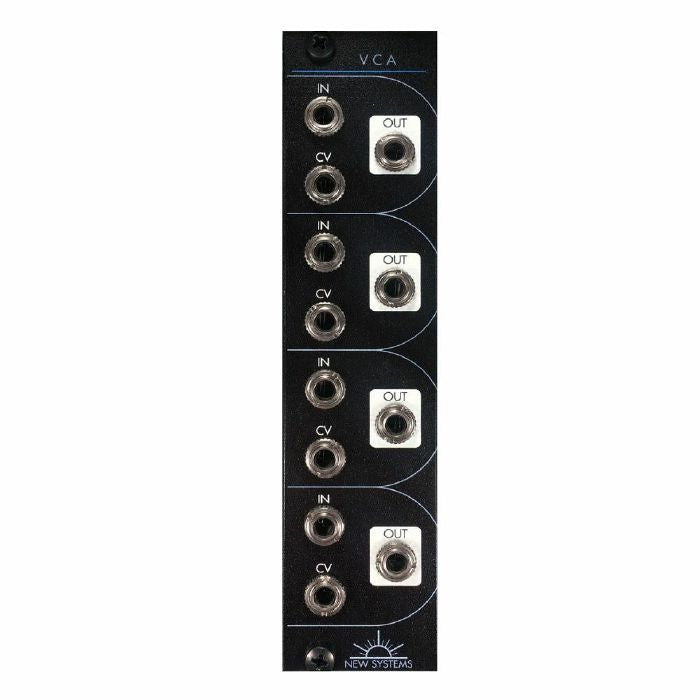

New Systems Instruments Low Distortion Quad VCA

Regular price $189.00 CAD
Regular price Sale price $189.00 CAD
Sale Sold out
Shipping calculated at checkout.

The New Systems Instruments VCA module gives you four well-calibrated VCAs in 6HP. These VCAs use operational transconductance amplifiers (OTAs) at their core, for true linear operation. However, unlike most OTA VCAs, the New Systems VCA is extremely low noise and distortion, coming in at < 0.2%, with ~0.05% typical.

There's no such thing as “transparent,” particularly in synthesis, where the concept of an original signal that could be faithfully reproduced is often altogether absent. In a VCA in particular, a desirable envelope response can be even more important than accurate reproduction of the input at some fixed level.

The New Systems Instruments VCA has an extremely neutral, open sound. The envelope response sounds pinpointingly fast and accurate. If you want a dirtier VCA, stay tuned. We're in the process of designing a different VCA with some control over signal and envelope linearity.


Size 6HP
Depth 22mm
Power Consumption +12V 25mA
−12V 25mA
THD+N at 1kHz 0.2% (max), ~0.05% (typical)
Output Swing −10V–+10V peak
Input Range −10V–+10V peak
CV Unity 5V
Input Impedance 85kΩ
Output Impedance 150Ω
Output Drive 2kΩ (min), 20kΩ+ (ideal)
