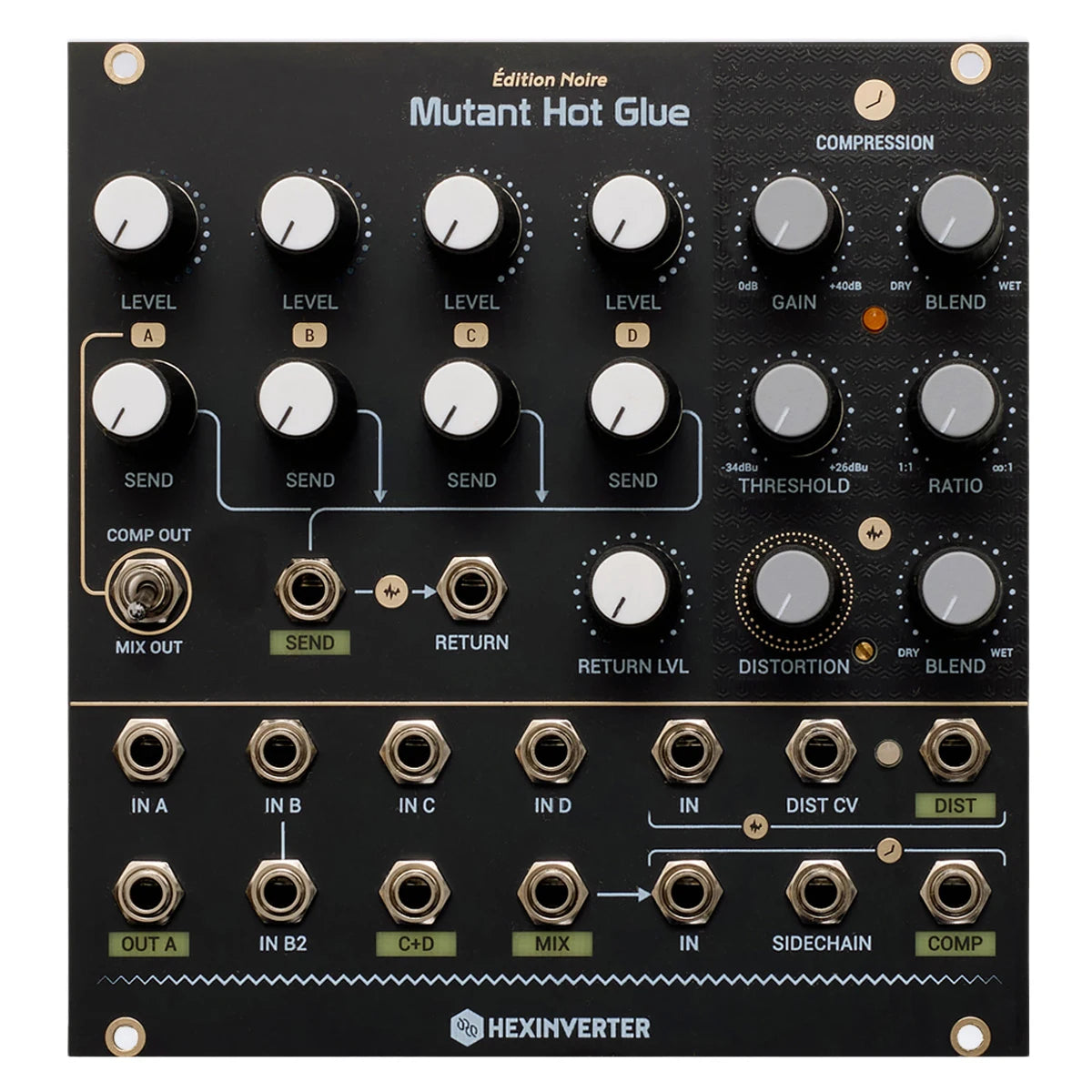

Hexinverter - Erica Synths Mutant Hot Glue
Features
4 Channel Mixer with Effects Send
- Â 4 input channels, each with their own level and effects send controlÂ
- Channel A mixer bypass switch and dedicated output for easy sidechain compressionÂ
- Channel B is dual input, but shares level/send controls (for dual output modules, like the Mutant Hihats)Â
- Channel C+D summed output
- Main mixer output normalized to compressor inputÂ
Hi-Fidelity Analog CompressorÂ
- Soft-knee compressor based on the same family of premium audio ICs used in some 500 Series studio gearÂ
- Dedicated threshold and compression ratio controlsÂ
- Gain control dials in up to +40dB of compressor make-up gainÂ
- Compressor sidechain input for creating pumping effectsÂ
- LED indicator actively displays the amount of compressor gain reductionÂ
Voltage Controlled Analog DistortionÂ
- A classic distortion topology reborn for modular analog synthesizers and drum processingÂ
- In/Outputs are conveniently normalized to the module’s send and return jacksÂ
- Blend control lets you adjust the mix of distorted and clean input signalÂ
- Fast responding CV input allows for complex modulation patterns and even modulating with audio signals
By default, the 4 channel mixer’s output conveniently feeds into the compressor’s input, giving access to easy New York style parallel compression by way of the compressor blend control. The dedicated output and mixer bypass switch for channel A allow you to use it as a sidechain source for the compressor. An effects send and return allow you to create complex effects routings within your modular system. With the number of excellent DSP and other effects modules on the market today, this makes it easy to combine modules to great effect, all within the eurorack modular domain
