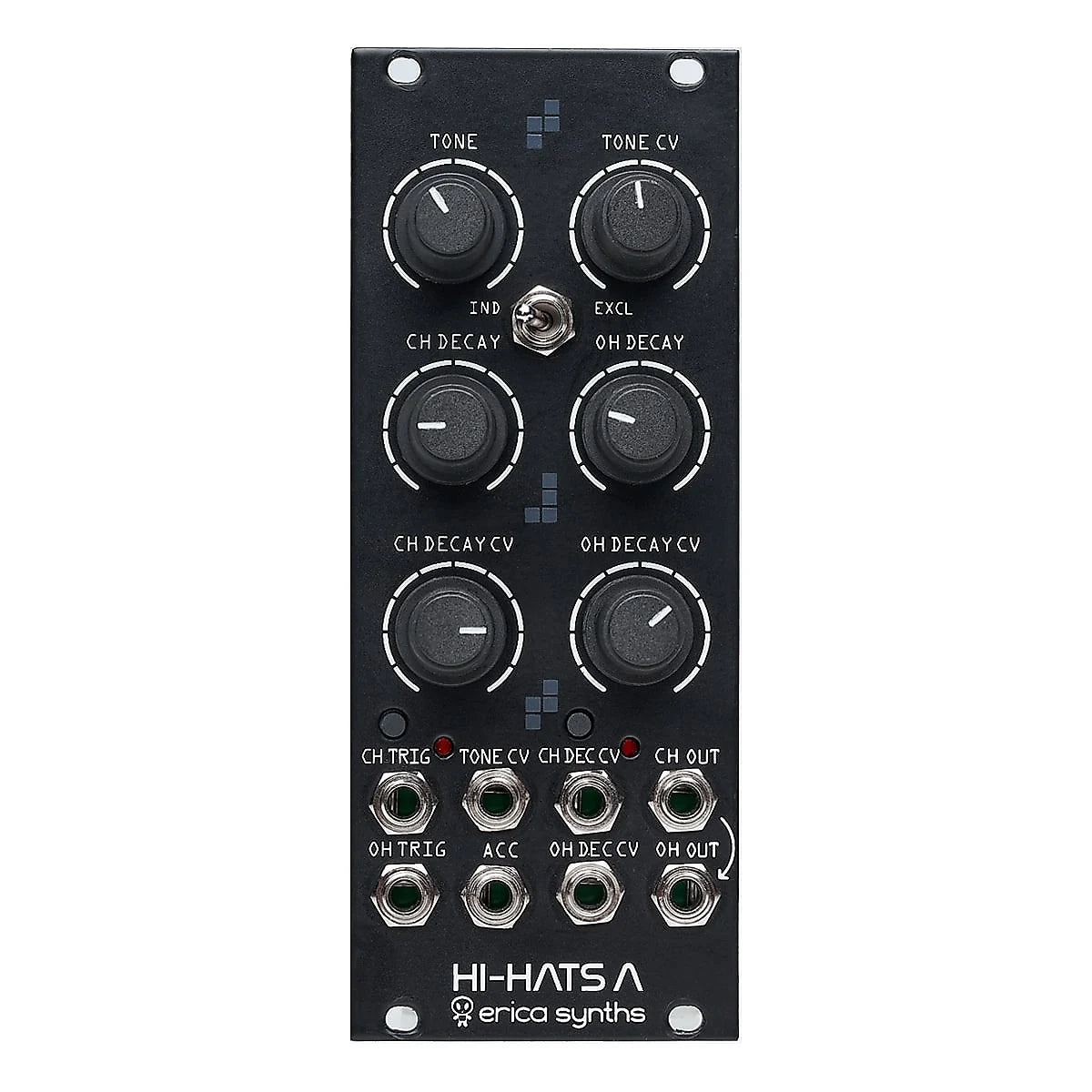

Erica Synths Hi Hats A

Erica Synths full analogue hi-hats module with accent and manual and CV control over Tone and Decay (individual for each hi-hat) allows you to create lot of variations in hi-hats track. Closed hat and Open hat can be played independently or exclusively (Open hat will not trigger, if Closed hat is triggered). The module is developed in collaboration with French company e-licktronic.

Decay range Closed hat	10ms - 200ms
Decay range Open hat	110ms - 800ms
Audio output level	-5…+5V
CV level (full span)	-5V - +5V
Accent CV level	5V
Tigger level	5V
Trigger time	1ms
Power consumption	33mA @ +12V, 26mA @ -12V
Module width	10HP
Module depth	50mm
