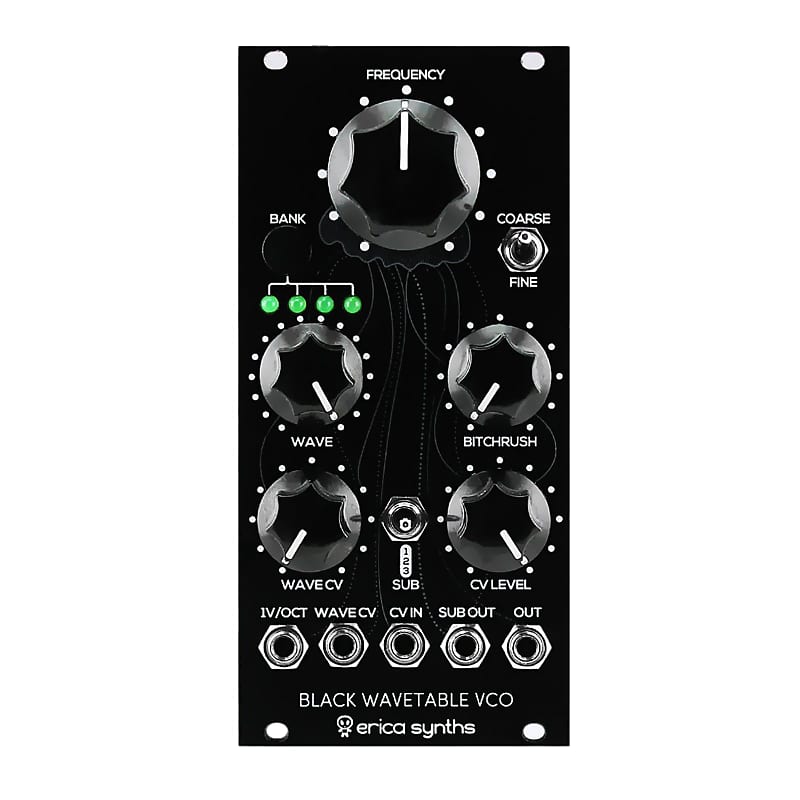

Erica Synths Black Wavetable VCO
- 16 wavetables of 16 waves
- Additional ROM chips with extra waves
- VC wavesurf
- VC bank surf
- Manual and VC bitcrush
- Built in VCA
- Wave morphing
- Suboscillator output
- 3 suboscillator waves (-1 and -2 actaves)
The VCO has separate -1 and -2 octaves suboscillator output, built in VCA and wave morphing feature for a more pleasant sound. Additional ROM chips (sold separately) with extra wavetables are available to adapt the module to your style of making music.
Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.
|Output signal level||-5V – +5V|
|Frequency range||30Hz – 5kHz|
|CV Input level||-10V – +10V|
|Power consumption||+48mA, -12mA|
