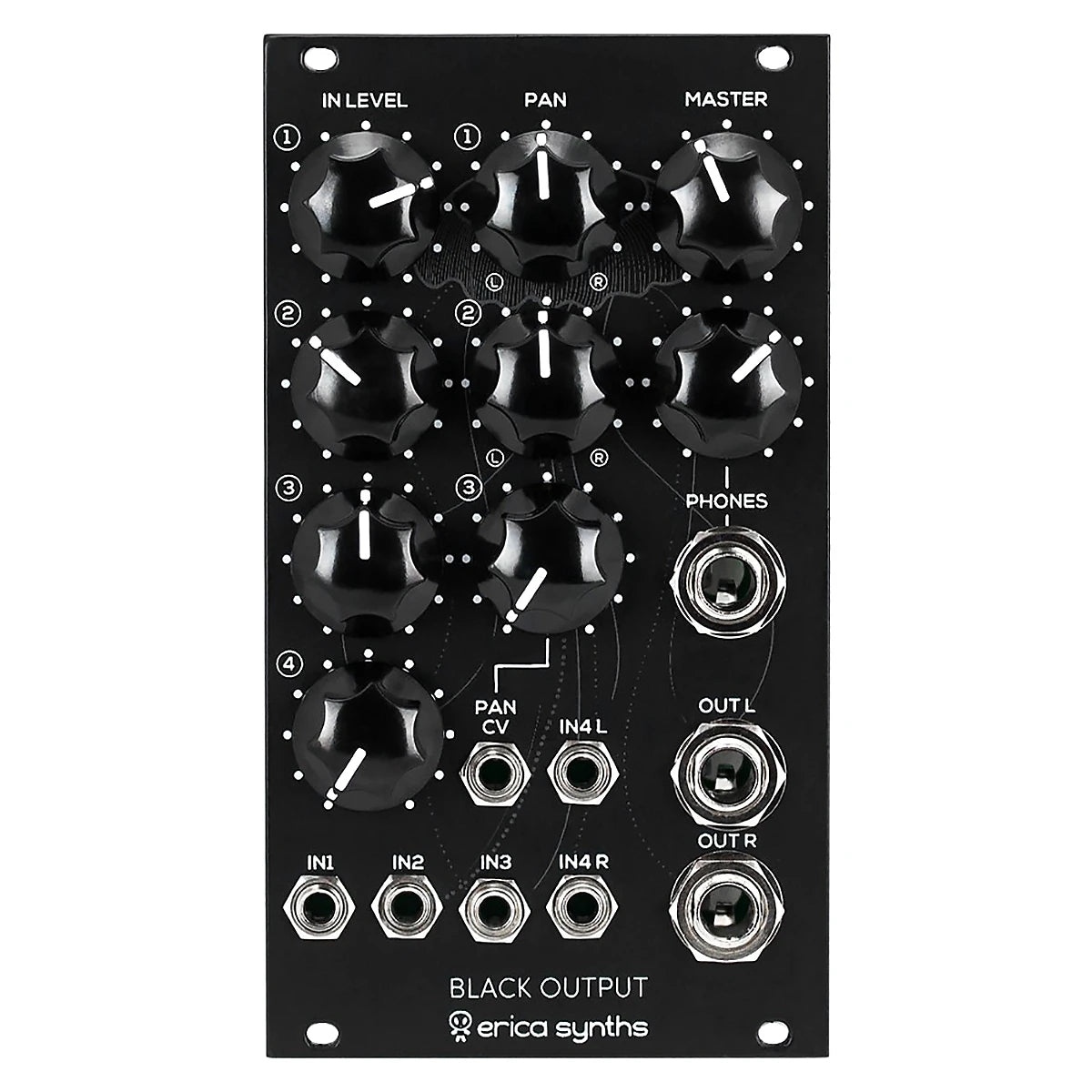

Erica Synths Black Output V2

Erica Synths Black Output is a high quality output mixer and a stereo panner with balanced outputs and headphone amplifier for monitoring your modular masterpieces.

All inputs are buffered, we use stereo potentiometers (similar to those used  in high quality studio mixers) for panning, IN4 is a stereo input with simultaneous level adjustment for both channels, IN3 has a CV controlled autopan function. There is also a 6.3mm jack for the balanced outputs and headphones.

Technical specifications:

Input signal level	-10V – +10V
Pan CV Input signal level	-10V - +10V
Phone amp out power	100mW
Power consumption	+52mA, -43mA
Module width	14HP
Module depth	35mm
