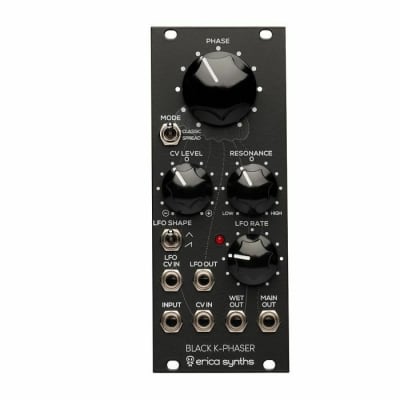

Erica Synths Black K-Phaser
Erica Synths Black K-Phaser
Features
- 8 all-pass filters with photoresistor control
- Classic and Spread (filter detune) mode
- Resonance attenuverter
- Selectable resonance path
- Built in VC LFO with a dedicated output
- Wet output
The Black K-Phaser retains the original concept of 8 all-pass filters with photoresistors, but we redesigned the filters and modulation circuit and added several unique features. A dip switch allows for selecting the number of filter stages involved in the resonance path, while the resonance attenuverter brings in never-heard-before feedback artefacts, and most importantly – the SPREAD mode detunes the all-pass filters for even more distinct behavior. A built-in voltage controlled LFO with selectable waveforms expands the modulation possibilities of the phaser and can be used as an independent modulation source for your modular system as well.
The Black K-Phaser is our tribute to the German electronic music pioneers that largely shaped the sound of electronic music worldwide.
-
Audio level 10Vptp
-
CV level (full span) -5V - +5V
-
Max power consumption 8+388mmAA@, -+312Vm, 7A8mA@-12V
-
Module width 10HP
-
Module depth 35mm
