Erica Synths

Erica Synths Hi-Hats D

Regular price $295.00 CAD
Regular price Sale price $295.00 CAD
Sale Sold out
Shipping calculated at checkout.

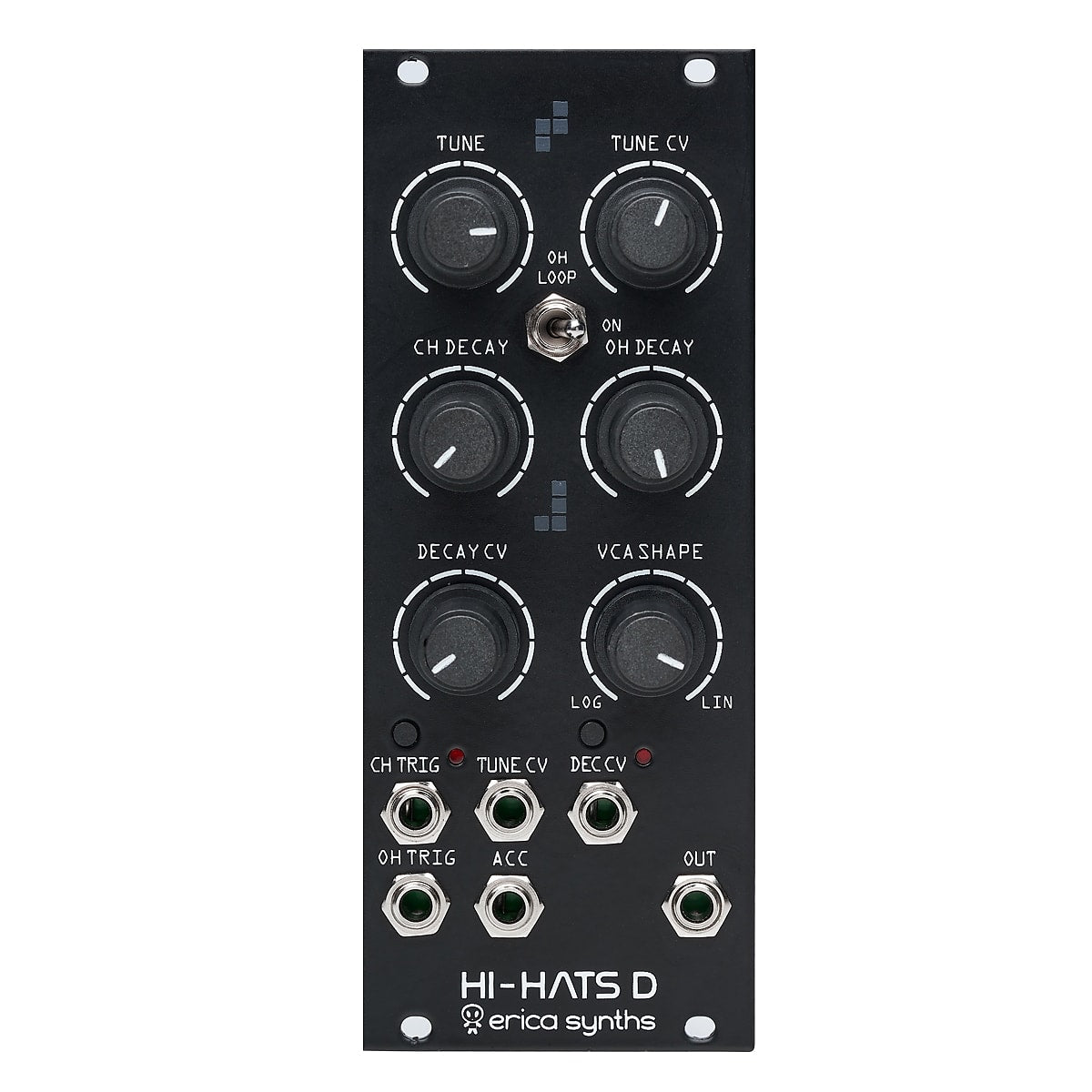

Hi-Hats D is Erica Synths take on classical digital hi-hats. Instead of using an integrated circuit DAC chip Hi-Hats D are using 6-bit discrete DAC for that unmistakable crunchy sound. For amplitude shaping samples are passed trough AS3330 based VCA and are controlled with an analog envelope generator for versatile and snappy sound. Extra feature is Open Hi-Hat looping – when it’s on, a certain part of the sample is looped while the envelope decay is on, thus creating distinct, delay-like effect.

Features

  • Discrete DAC
  • Analog VCA and EG
  • Tune and Decay controls
  • CV control with an attenuators over Tune and Decay
  • VCA response control
  • Open HiHat looping
  • Manual trigger
  • Accent for better expression
Audio output level -5...+5V
CV level (full span) -5 - +5V
Accent CV level 10V
Tigger level 5V
Tigger time 1ms
Power consumption 56mA @ + 12V, 35mA @ -12V
Module width 10HP
Module depth 45mm
